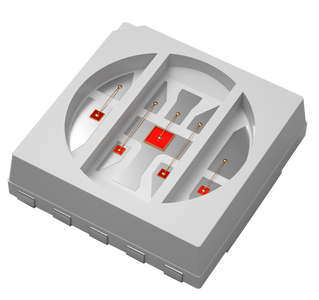

LED 5050
From High-Efficiency Cob & Smd Leds To Customizable Led Modules, We Deliver Reliable, High-Performance Solutions For Global Lighting Manufacturers.
Key Features:
White LED Compare With LM301H, EVO series
Excellent Sulfur Resistance
CCT Options: 3000K-6500K
Lm-80 / UL Certification
View more SMD LED
Specifications
| Product image | Product Type | Code Number | Current(mA) | Typical Voltage(V) | Max Current(mA) | Color | CRI/Ra | Substrate | LPW(lm/W) | Download |
|
/ | / | / | / | / | / | / | / | / | / |
|
/ | / | / | / | / | / | / | / | / | / |
|
/ | / | / | / | / | / | / | / | / | / |
|
508H | LDR-5050TEBB450M0UB0P0 | 180 | 6 | 800 | Blue | — | EMC | — | / |
|
|
510B | LDR-5050TEAR660VDR0P0 | 300 | 2 | 1000 | Deepred | — | EMC | — | / |
|
|
5041 | LDR-5050CNFRGBW | 350 | R:2V G:3V B:3V W:3V | 1000 | RGBW | — | EMC | — | / |
|
|
5031 | LDR-5050TTARGY1 | 20 | R:2V G:3V Y:2V | 60 | RGY | — | PCT | — | / |
|
|
503B | LDR-5050TAARGB2 | 20 | R:2V G:3V B:3V | 60 | RGB | — | PPA | — | / |
|
|
512H | LDR-5050TEB4070N040GE0 | 400 | 9 | 500 | White 3000-6500K | 70 | EMC | 215-225 | / |
|
|
508T | LDR-5050TEB5070R0A50E0 | 30 | 22 | 200 | White 2700-6500K | 70 | EMC | 245-255 | / |
|
|
508T | LDR-5050TPA3070M030GE0 | 150 | 6 | 500 | White 3000-5000K | 70 | PPE | 255-265 | / |
|
|
510T | LDR-5050TPB4070M0A40E0 | 150 | 6 | 500 | White 2700-6500K | 70 | PPE | 250-260 | / |
|
|
510K | LDR-5050TEB57700A57E0 | 150 | 6 | 500 | White 2700-6500K | 70 | EMC | 240-250 | / |
|
|
510K | LDR-5050TPB4070M0A40E0 | 150 | 6 | 500 | White 2700-6500K | 70 | PPE | 245-255 | / |
|
|
510K | LDR-5050TPB4070M0A40E0 | 150 | 6 | 500 | White 2700-6500K | 70 | PPE | 245-255 | / |
|
|
510K | LDR-5050TPA5070T0A50E0 | 45 | 26 | 100 | White 2700-6500K | 70 | PPE | 240-250 | / |
|
|
508H | LDR-5050TEB3080M0A30H0 | 640 | 6 | 640 | White 2700-6500K | 80 | EMC | 210-230 | / |
|
|
508H | LDR-5050TPB4070T0A40E0 | 45 | 24 | 125 | White 2700-6500K | 70 | PPE | 240-255 | / |
|
|
508H | LDR-5050TEB3070M0A30E0 | 150 | 6 | 500 | White 2700-6500K | 70 | EMC | 240-250 | / |
|
|
508B | LDR-5050TTA4070M0A40E0 | 150 | 6 | 500 | White 3800-5200K | 70 | PCT | 235-245 | / |
